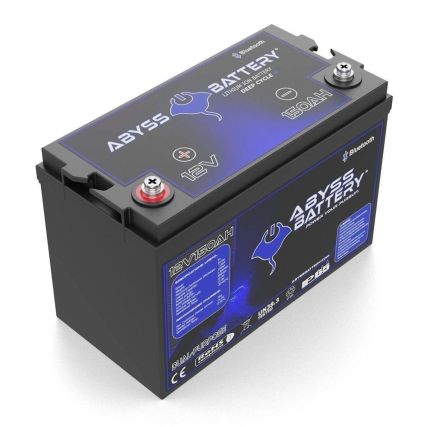

ABYSS Group 31 Battery – Deep Cycle + Trolling w/Bluetooth AB-12V150-BT

ABYSS Group 31 Battery – Deep Cycle + Trolling w/Bluetooth AB-12V150-BT

Greetings anglers! Does your current lead-acid battery setup run out of juice way too often? With the ABYSS? 12V 150Ah Dual-Purpose Marine Lithium Battery, not only can you crank and cruise for long, but do so without having to shut off all your electronics. With a peak CCA of 1500A, this multi-purpose lithium-ion battery delivers plenty of power when you need to start outboard motors, generators, and other high-load devices. Our deep cycle marine battery can also be used in series or parallel sequence to ensure long and steady power draw to power fish finders, GPS systems, audio systems, and electric downriggers.
This Group 31 Battery is compact, light-weight, and compatible with a wide range of outboard motors, trolling motors, watercraft’s, RVs, trucks, and golf carts. The ABYSS? 12V 150Ah is a powerhouse that you can depend on every outing.

• Higher qualified cylindrical cells – UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
• Bluetooth? Connectivity – Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
• Built-in Heating – Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. The system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest.
• More stable and firm internal structure – The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.

TECHNICAL SPECIFICATIONS

• Nominal Voltage – 12.8V
• Nominal Capacity – 150Ah
• Parallel Connection – Maximum 4 units
• Serial Connection – Maximum 4 units
• Bluetooth Management System (BMS) – 4S150A (Available on Android/iOS)
• Charge Voltage – 14.4?0.2V
• Standard Charge Current – 30A
• Fast Charge Current – 75A
• Max. Continuous Discharge Current – 150A
• Peak Discharge Current – 800A (300ms)
• Discharge Cut-off Voltage – 10V
• Cycle Life – 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
• Self Discharge Rate – Less than 3% per month
• Operating Charge Temperature Range – 0?C to 55?C (32?F to 131?F)
• Operating Discharge Temperature Range – -20?C to 60?C (-4?F to 140?F)
• Storage Temperature Range – -5?C to 45?C (23?F to 113?F)

PHYSICAL SPECIFICATIONS

• Dimensions: 330*173*216mm (Group 31)
• Approximate Weight: 15.5 KG
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell
• Cell Holder: Yes

ADDITIONAL INFORMATION

The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.

Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.

Implemented strict quality control measures ensure reliability and consistency.

Manufacturer Part Number: AB-12V150-BT
