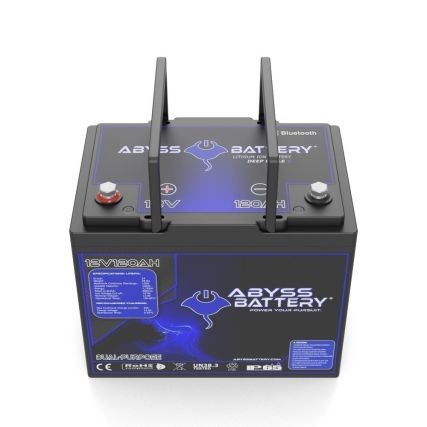

ABYSS Group 24 Battery – Deep Cycle + Trolling w/Bluetooth AB-12V120-BT

ABYSS Group 24 Battery – Deep Cycle + Trolling w/Bluetooth AB-12V120-BT

When you’re out on the open water, the last thing you want to worry about is whether or not your battery will hold up. With the ABYSS? 12V 120Ah Dual-Purpose Lithium Marine Battery, you can rest easy knowing you have a powerful and reliable battery on board. This LiFePO4 battery is designed to be an upgrade replacement for standard BCI group 24 AGM batteries and is compatible with existing 12V AGM battery chargers. With a peak CCA of 1500A, it delivers plenty of power to start outboard motors, generators, and other high-load devices. Plus, it can be used in series or parallel sequence to ensure long and steady power draw for fish finders, GPS systems, audio systems, electric downriggers, and more. Compact and light-weight, the ABYSS? 12V 120Ah is a powerhouse you can depend on each and every outing.

• Higher qualified cylindrical cells – UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
• Bluetooth? Connectivity – Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
• Built-in Heating – Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. The system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest.
• More stable and firm internal structure – The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.

TECHNICAL SPECIFICATIONS

• Nominal Voltage – 12.8V
• Nominal Capacity – 120Ah
• Parallel Connection – Maximum 4 units
• Serial Connection – Maximum 4 units
• Bluetooth Management System (BMS) – 4S150A (Available on Android/iOS)
• Charge Voltage – 14.4?0.2V
• Standard Charge Current – 24A
• Fast Charge Current – 60A
• Max. Continuous Discharge Current – 120A
• Peak Discharge Current – 800A (300ms)
• Discharge Cut-off Voltage – 10V
• Cycle Life – 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
• Self Discharge Rate – Less than 3% per month
• Operating Charge Temperature Range – 0?C to 55?C (32?F to 131?F)
• Operating Discharge Temperature Range – -20?C to 60?C (-4?F to 140?F)
• Storage Temperature Range – -5?C to 45?C (23?F to 113?F)

PHYSICAL SPECIFICATIONS

• Dimensions: 260*170*208mm (Group 24)
• Approximate Weight: 11.5 KG
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell
• Cell Holder: Yes

ADDITIONAL INFORMATION

The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.
Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.
Implemented strict quality control measures ensure reliability and consistency.

Manufacturer Part Number: AB-12V120-BT
