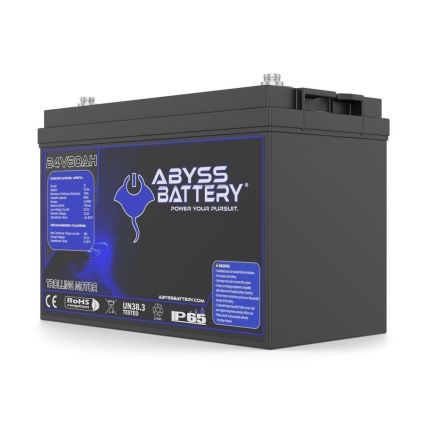

ABYSS Group 27 Battery – Deep Cycle + Trolling w/Bluetooth AB-24V60-BT

ABYSS Group 27 Battery – Deep Cycle + Trolling w/Bluetooth AB-24V60-BT

Tired of having to constantly recharge your trolling motor battery? What about that lingering fear of your battery dying in the middle of your fishing trip?

Swap your unreliable trolling batteries for a powerful ABYSS? 24V 60AH Lithium Trolling Motor Battery. This Group 27 lithium marine battery is compact, lightweight, and will free up storage space on your boat by replacing two 12 volt Lead-acid or AGM batteries in series.

Whether you’re trolling in calm weather or fighting the wind, this battery will back you up even with load-heavy consumption. Ideal for deep cycle applications in diverse marine environments, seasons, and temperatures, our 24V 60Ah trolling motor lithium battery gives you a long and steady draw to last even for multi-day fishing trips.

Just set it, charge it, and off you go. Tight lines!

• Higher qualified cylindrical cells – UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000 times and excellent consistency.
• Bluetooth? Connectivity – Monitor the battery status (charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
• Built-in Heating – Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. The system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest.
• More stable and firm internal structure – The cell holders within our battery protect and separate each cell to avoid any short circuit risks caused by intense vibration or impact. The separation and space created between each cell also improves the overall heat dissipation within the battery pack while charging and discharging.

TECHNICAL SPECIFICATIONS

• Nominal Voltage – 24V
• Nominal Capacity – 60Ah
• Parallel Connection – Maximum 4 units
• Serial Connection – Maximum 2 units
• Bluetooth Management System (BMS) – 8S100A (Available on Android/iOS)
• Charge Voltage – 28.8?0.4V
• Standard Charge Current – 12A
• Fast Charge Current – 30A
• Max. Continuous Discharge Current – 60A
• Peak Discharge Current – 500A (300ms)
• Discharge Cut-off Voltage – 20V
• Cycle Life – 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD
• Self Discharge Rate – Less than 3% per month
• Operating Charge Temperature Range – 0?C to 55?C (32?F to 131?F)
• Operating Discharge Temperature Range – -20?C to 60?C (-4?F to 140?F)
• Storage Temperature Range – -5?C to 45?C (23?F to 113?F)

PHYSICAL SPECIFICATIONS

• Dimensions: 305*169*210mm (Group 27)
• Approximate Weight: 13.5 KG
• Terminal Type: M8
• Case Color/Material: Black Plastic case (ABS)
• IP Rating: IP65
• Cell Type: Cylindrical LiFePO4 cell
• Cell Holder: Yes

ADDITIONAL INFORMATION

The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.

Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.

Implemented strict quality control measures ensure reliability and consistency.

Manufacturer Part Number: AB-24V60-BT
