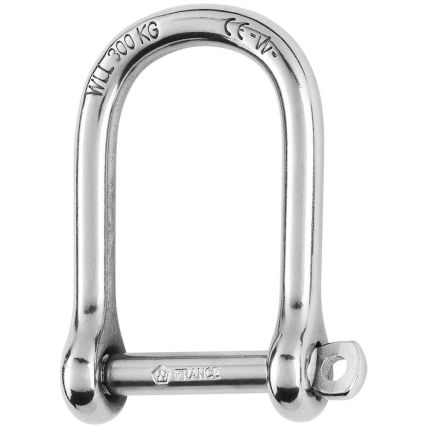

Self-Locking Large Shackle – Diameter 5mm – 3/16″

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 550
• WLL (lb) 480
• Breaking load (lb) 2420
• Weight (lb) 0.035

Dimensions (see 2nd image):

• A (inch) 1-27/64″
• B (inch) 25/32″
• C (inch) 13/64″
• D (inch) 7/16″
• D diameter (inch) 13/64″
• E (inch) 13/64″
• F (inch) 1-57/64″
• G (inch) 1-3/8″

Manufacturer Part Number: 01262
