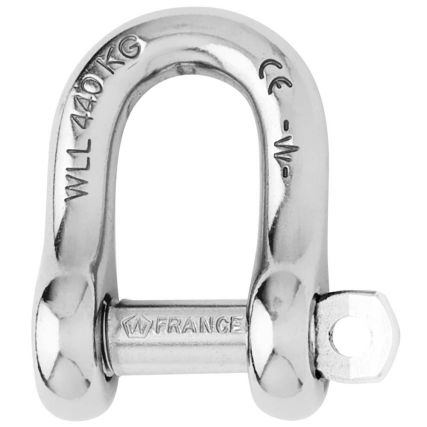

Captive Pin D Shackle – Diameter 4mm – 5/32″

Features:

• Captive pin “D” shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head…

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.02

Dimensions (see 2nd image):

• A (inch) 33/64″
• B (inch) 5/16″
• C (inch) 13/64″
• D (inch) 23/64″
• D diameter (inch) 5/32″
• E (inch) 5/32″
• F (inch) 15/16″
• G (inch) 55/64″

Manufacturer Part Number: 01401
