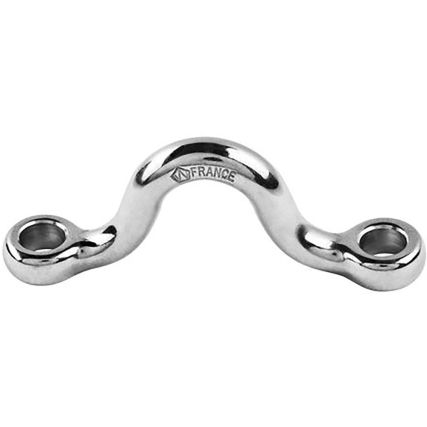

Wichard Eye Strap – 4mm Diameter – 5/32″ – 30mm Spacing – 1-17/64″

Wichard Eye Strap – 4mm Diameter – 5/32″ – 30mm Spacing – 1-17/64″

Eye Strap – 4mm Diameter – 5/32″ – 30mm Spacing – 1-17/64″

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes…)

Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 1430 / (kg) 650
• Weight: (lb) 0.009 / (g) 4

Dimensions:

• A: (inch) 5/16″ / (mm) 8
• B: (inch) 7/16″ / (mm) 11
• D diameter: (inch) 5/32″ / (mm) 4
• E: (inch) 1 17/64″ / (mm) 32

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 09201
