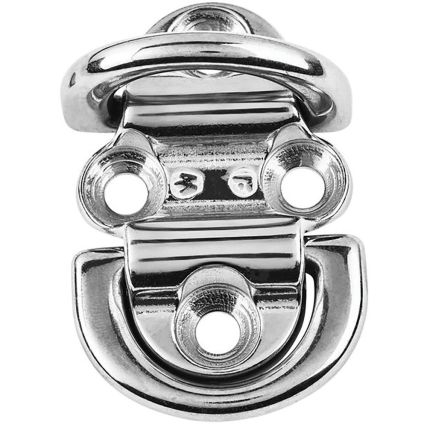

Double Folding Pad Eye – 10mm Diameter – 25/64″

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 10050 / (kg) 4560
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.089 / (g) 494

Dimensions:

• A: (inch) 2 61/64″ / (mm) 75
• B: (inch) 1 49/64″ / (mm) 45
• C: (inch) 29/32″ / (mm) 23
• d diameter: (inch) 13/32″ / (mm) 10.5
• D diameter: (inch) 25/64″ / (mm) 10
• E: (inch) 4 3/32″ / (mm) 104
• F: (inch) 3 5/64″ / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 06566
