Shakespeare Quick Connect 3′ Vhf Antenna Chrome Ferrule

Shakespeare Quick Connect 3′ Vhf Antenna Chrome Ferrule

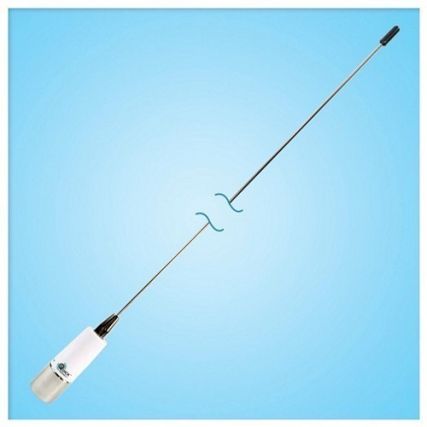

Shakespeare Quick Connect 3′ Stainless Steel VHF Whip

Model: QC-3
UPC: 719441172985

• ?QuickConnect™ system, screw or unscrew antenna to disconnect or connect
• ?High quality connection so that no noise is generated due to vibrations
• ?Splash protection cap to protect the connector on the mount when antenna is disconnected
• ?Centerpin® PL-259 Connector is an easy crimp-on type connector
• ?Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount

Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the new QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

Must use Quick Connect Series Mounts

Specifications

Band	Marine VHF
Antenna gain	3db
Maximum input power	50 watts
SWR	Nominally 1.3:1 at 156.8 MHz
Bandwidth	5 MHz within 2.0:1 VSWR
Ferrule	Chrome-Plated Brass
Coax supplied	None
Connector supplied	None
Color/finish	Stainless Steel ship, White plastic body
Polarity	Vertical
Impedance	50 Ohms (with QC Mount attached)
DC Ground	No DC Ground — The antenna will read open on continuity test.

Manufacturer Part Number: QC-3
