Shakespeare 5215-C-X 3′ Vhf Antenna

Shakespeare 5215-C-X 3′ Vhf Antenna

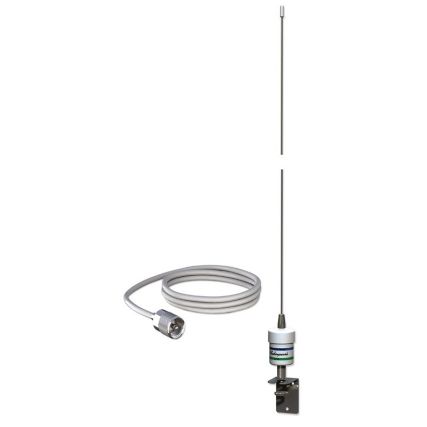

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36″ LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60′ RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

• Hermetically sealed, tin-plated copper wire coil
• Stainless steel body and whip
• SO-239 connector
• Includes 60′ RG-8/X low-loss cable and PL-259 connectors.
• Mount: Stainless steel “L” bracket supplied, for mast mounting
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	7 MHz
SWR:	1.5:1 @ 156.8 MHz
Impedance:	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	60′ RG-8X cable
Height (feet):	3′
Polarization:	Vertical
Radiation pattern:	Omni-directional

Manufacturer Part Number: 5215-C-X
