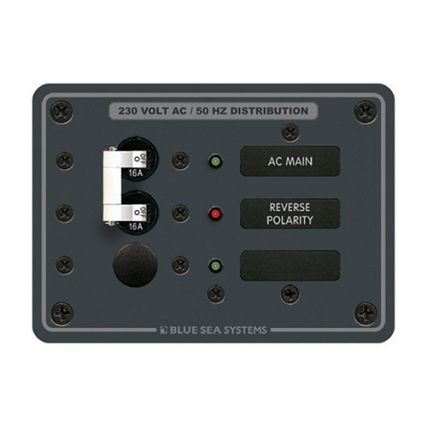

Blue Sea 8129 Ac Main + Branch A-Series Toggle Circuit Breaker Panel (230v) – Main + 1 Position

Blue Sea 8129 Ac Main + Branch A-Series Toggle Circuit Breaker Panel (230v) – Main + 1 Position

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8129
White Switches

(1) 16A Double Pole Circuit Breaker Installed

Features:

• 230V
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• Maximum panel amperage – 50 Amperes
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels
• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 8129
