Blue Sea 5007100 Class T Fuse Block W/Insulating Cover – 110 To 200a

Blue Sea 5007100 Class T Fuse Block W/Insulating Cover – 110 To 200a

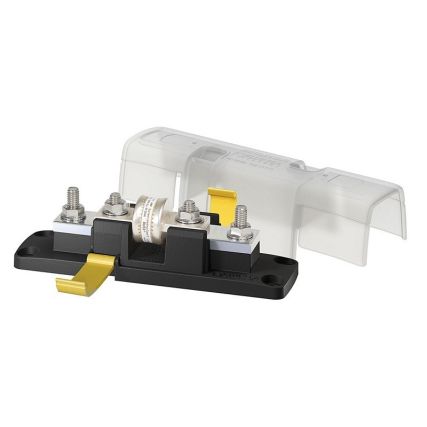

Class T Fuse Block with Insulating Cover – 110 to 200A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 200A
• Maximum Voltage: 160V DC
• Fuse Mounting Block: Tin-Plated Copper
• Terminal Stud Size: 5/16″-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 5007100
