Blue Sea 7495 360 Panel – Rocker Switch Dpdt – (On)-Off-(On)

Blue Sea 7495 360 Panel – Rocker Switch Dpdt – (On)-Off-(On)

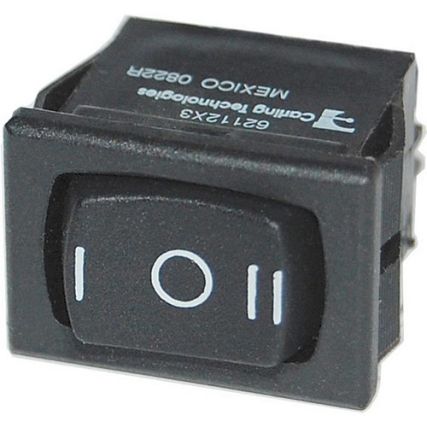

360 Panel – Rocker Switch DPDT – (ON)-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF-(ON)
• Pole/Throw**: DPDT
• Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
• Terminal Type: Wire Leads
• Terminal Size: 6.00″ (152.4mm)
• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST – Single Pole/Single Throw
SPDT – Single Pole/Double Throw
DPST – Double Pole/Single Throw
DPDT – Double Pole/Double Throw

***Maximum Amperage – Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 7495
