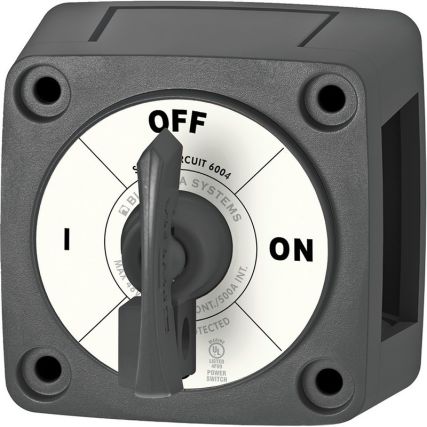

Blue Sea 6004200 Single Circuit On-Off W/Locking Key – Black

Blue Sea 6004200 Single Circuit On-Off W/Locking Key – Black

Single Circuit ON-OFF with Locking Key – Black

300 Amps continuous rating for outboards and small gasoline or diesel engines

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ (22 mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Black
• Maximum Voltage: 48V DC
• Continuous Rating: 300A
• Intermittent Rating: 500A
• Cranking Rating 30 sec: 900A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 6004200
