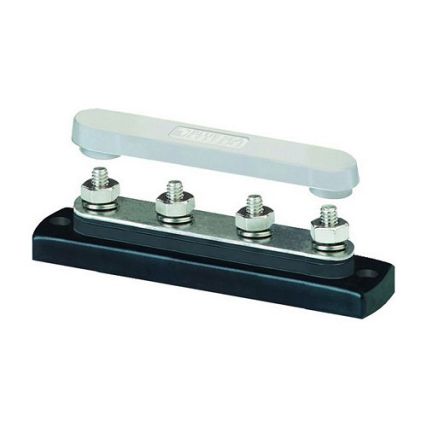

MiniBus 100 Ampere Common BusBar 4 x 10-32 Stud Terminal with Cover

PN:  2315

• Great for limited space applications in electronics cabinets and under dashboards
• Snap on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screw
• Pressed on busbar eliminates the need for a securing nut
• Stainless steel studs allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and corrosion resistance
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
• Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
  =
• Stainless steel Phillips screws for easier installation and resistance to stripping
• UL 94-VO rated base material resists high heat

Continuous Amperage	100 Amperes AC/DC
Maximum Voltage Rating	300 Volts AC/48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Reinforced Polycarbonate
Cover Material	Clear Polycarbonate
Weight	0.17 Lb

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 2315
