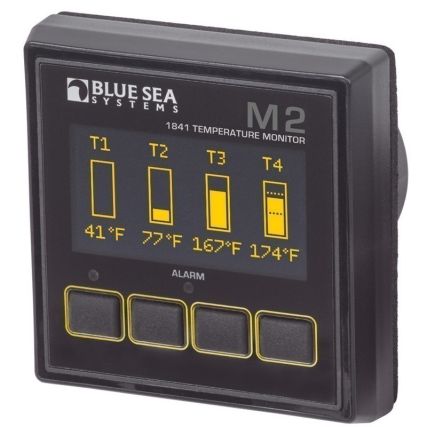

Blue Sea 1841 M2 Oled Temperature Monitor

Blue Sea 1841 M2 Oled Temperature Monitor

M2 OLED Temperature Monitor

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
Features:

• Auto-dimming, bright Organic LED display is easy to read
• 80dB alarm on all models
• Isolated 500mA MOSFET relay
• Includes external DC Shunt or AC Current Transformer when required
• Versatile external temperature monitoring
• Monitor up to 4 temperature sensors
• Temperatures range from -40°C to 120°C (-40°F to 250°F)
• Measures in Fahrenheit or Celsius
• ABYC compliant for engine exhaust
• Waterproof temperature sensors included

Specifications:

• Meter: Temperature
• Function: Monitors Temperature
• Display Size: 55mm x 28mm
• Input Voltage: 7-70V DC
• Range: 0.3W-1.0W
• Sensor Locations: up to 4
• Temperature Range: -40°C – 120°C (-40°F – 250°F)
• Temp Sensor: 4 x PN 1821
• Weight: 0.25lb (0.11 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 1841
