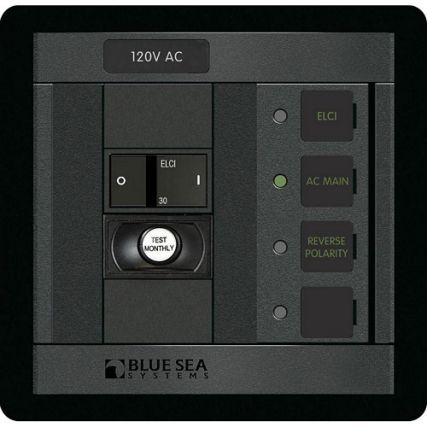

ELCI Main 30A Double Pole Panel

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Red ” Reverse Polarity” LED
• All circuit label positions are backlit
• “ON” indicating LEDs

Specifications:

• Positions: 1
• Nominal Voltage: 120V AC
• Height: 4.75″ (120.65mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.00″ (76.2mm)
• Weight: 1.10lb (0.5kg)

Includes:
(1) – 3102100 – A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 1502
