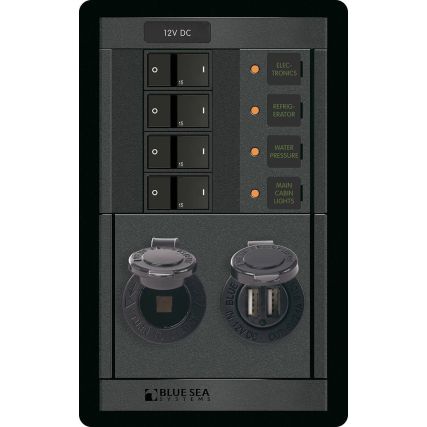

1495 – 360 Panel – 4 Position 12V with Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

• ON-indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions – Four (4)
• Nominal Voltage – 12V DC
• Maximum Amperage – 100A
• Circuit Breaker Type – 4 A-Series (15A)
• USB Output – 12/24V Dual USB
• Socket Output – 12V Dash socket
• Dimensions – (H x W x D) – 7.75″ x 4.88″ x 3.5″ (197 x 124 x 89mm)

In the Box:

• 1495 Panel
• Instruction Manual

*Sold as an Individual

Manufacturer Part Number: 1495
