Blue Sea 1455 4 Position Switch Clb Square

Blue Sea 1455 4 Position Switch Clb Square

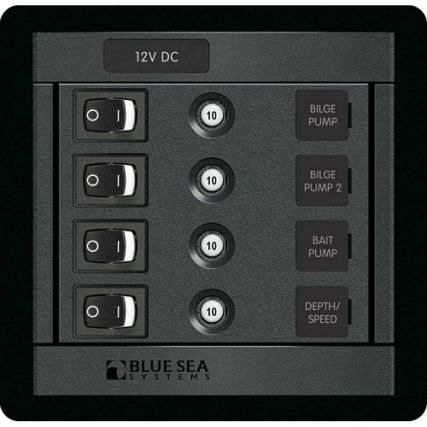

4 Position Switch CLB Square

Provides circuit protection and switching in a compact and economical panel

• Available with voltmeters and ammeters
• Includes 4205-Square Format Label Set

Specifications:

• Positions: 4
• Nominal Voltage: 12V DC
• Maximum Amperage*: 40A
• Height: 4.75″ (120.65mm)
• Width: 4.88″ (123.95mm)
• Depth: 3.50″ (88.9mm)
• Weight: 1.05lb (0.48kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(4) – 7054 – Push Button Reset Only Quick Connect Circuit Breaker – 10 Amps
(4) – 7480 – Rocker Switch SPST – ON-OFF
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 1455
