Bep Ac Circuit Breaker Panel W/Digital Meters, 8sp 2dp Ac230v Acsm Stainless Steel Vertical

Bep Ac Circuit Breaker Panel W/Digital Meters, 8sp 2dp Ac230v Acsm Stainless Steel Vertical

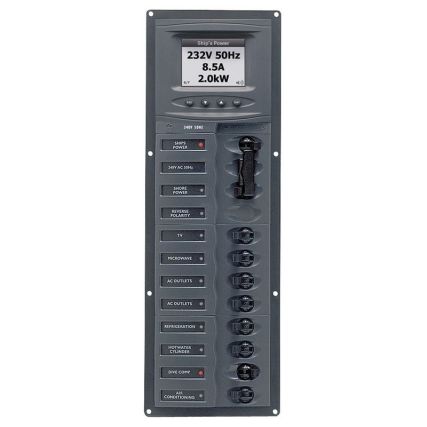

AC Circuit Breaker Panel with Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

Features

• Supplied with tranducer
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Digital meter shows volts, amps and frequency
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 8 Loads + 2 Inputs
• Circuit Breakers: 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A
• Nominal Voltage: 230V AC
• Maximum Amperage: 30A
• Dimensions: 15″ X 5″ X 2.5″
• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 900-AC2V-ACSM
