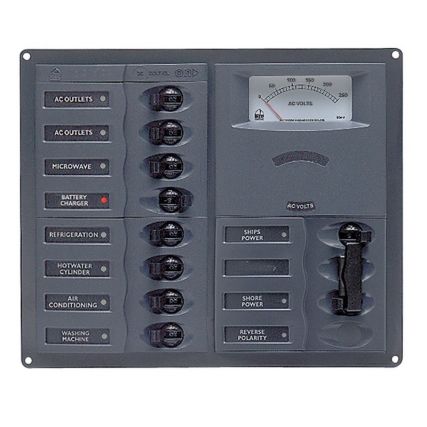

AC Circuit Breaker Panel with Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical

Features

• Supplied with tranducer
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Analog meter
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or
  shore power)

Specifications

• Total Positions: 8 Loads + 2 Inputs
• Circuit Breakers: 2x 10A, 3x 15A, 2x 20A, 1x 25A + 1x 30A, 1x 50A
• Nominal Voltage: 110V AC
• Maximum Amperage: 50A
• Dimensions: 7.9″ X 9.75″ X 2.5″
• Neg Bus: IS-6MM-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 900-AC2H-AM-110
