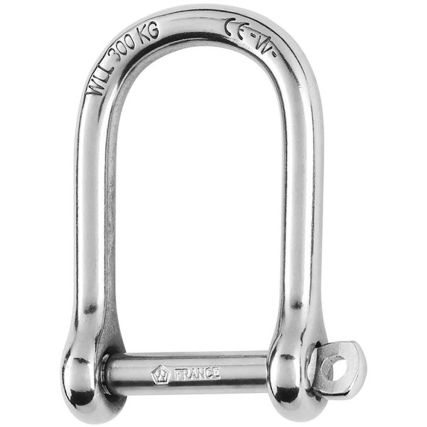

Wichard Self-Locking Large Opening Shackle – 8mm Diameter – 5/16″

Wichard Self-Locking Large Opening Shackle – 8mm Diameter – 5/16″

Self-Locking Large Opening Shackle – 8mm Diameter – 5/16″

Features:

• Self-locking large shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• For applications where a large opening shackle is required

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1780 / (kg) 810
• WLL: (lb) 1190 / (kg) 540
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.148 / (g) 67

Dimensions:

• A: (inch) 2 1/4″ / (mm) 57
• B: (inch) 1 17/64″ / (mm) 32
• C: (inch) 5/16″ / (mm) 8
• D: (inch) 43/64″ / (mm) 17
• D diameter: (inch) 5/16″ / (mm) 8
• E: (inch) 5/16″ / (mm) 8
• F: (inch) 3 1/32″ / (mm) 77
• G: (inch) 2 1/4″ / (mm) 57

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 01264
