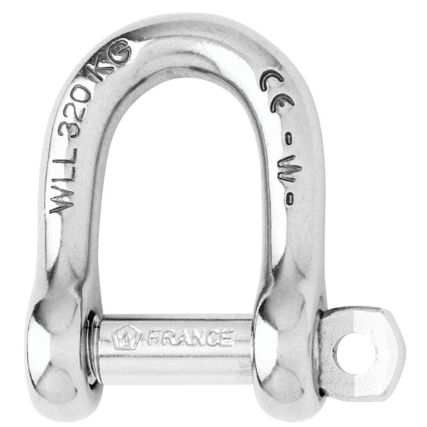

Self-Locking D Shackle – Diameter 4mm – 5/32″

Features:

• Self-locking D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 300
• Breaking load (lb) 1540
• Weight (lb) 0.015

Dimensions (see 2nd image)

• A (inch) 33/64″
• B (inch) 5/16″
• C (inch) 5/32″
• D (inch) 5/16″
• D diameter (inch) 5/32″
• E (inch) 1/8″
• F (inch) 29/32″
• G (inch) 25/32″

Manufacturer Part Number: 01201
