Wichard Self-Locking Allen Head Pin D Shackle – 6mm Diameter – 1/4″

Wichard Self-Locking Allen Head Pin D Shackle – 6mm Diameter – 1/4″

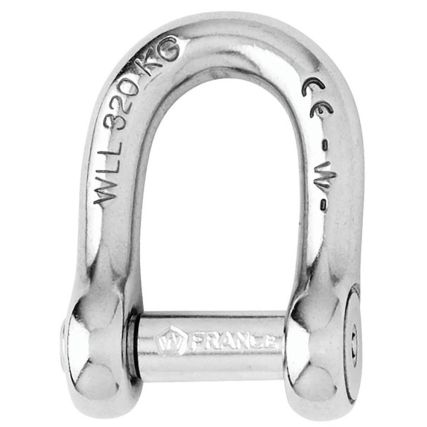

Self-Locking Allen Head Pin D Shackle – 6mm Diameter – 1/4″

Features:

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Ideal to link chains and anchor
• On the halyard, avoids damaging the sails
• To be used when the clutter is reduced

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• WLL: (lb) 700 / (kg) 320
• Breaking load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.049 / (g) 22

Dimensions:

• A: (inch) 3/4″ / (mm) 19
• B: (inch) 15/32″ / (mm) 12
• C: (inch) 15/64″ / (mm) 6
• D: (inch) 15/32″ / (mm) 12
• D diameter: (inch) 15/64″ / (mm) 6

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 01303
