Wichard Hr Snap Shackle W/Thimble Eye – Length 3-3/4″

Wichard Hr Snap Shackle W/Thimble Eye – Length 3-3/4″

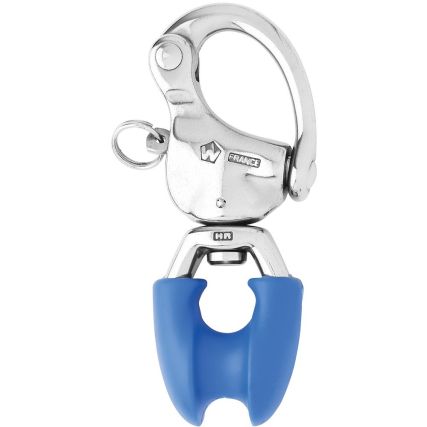

HR Snap Shackle with Thimble Eye – Length 3-3/4″

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
• Allows to splice the halyard directly onto the snap shackle (without using a thimble)
• Avoids the wear of the ropes
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

• Snap shackle applications
• Allows to splice the halyard
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials HR 17.4 PH stainless steel grade
• Length (inch) 3 3/4″
• Working load (lb) 2110
• Breaking load (lb) 4400
• Weight (lb) 0.168
• A (inch) 5/8″
• B (inch) 15/32″

Manufacturer Part Number: 02493
