Wichard Hr Quick Release Snap Shackle With Swivel Eye – 80mm Length – 3-5/32″

Wichard Hr Quick Release Snap Shackle With Swivel Eye – 80mm Length – 3-5/32″

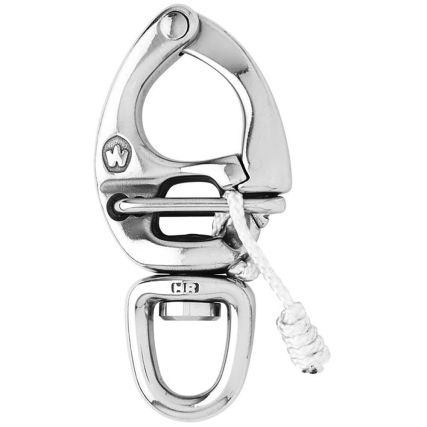

HR Quick Release Snap Shackle With Swivel Eye – 80mm Length – 3-5/32″

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 5070 / (kg) 2300
• Weight: (lb) 0.194 / (g) 88

Dimensions:

• A: (inch) 5/8″ / (mm) 16
• B: (inch) 15/32″ / (mm) 12
• Length: (inch) 3 5/32″ / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer Part Number: 02674
