Wichard Hr Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″

Wichard Hr Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″

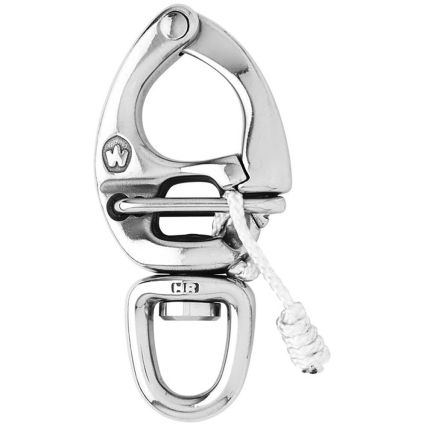

HR Quick Release Snap Shackle With Swivel Eye – 130mm Length – 5-1/8″

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye
• The opening is made by pulling the lanyard
• Perfect to attach one sheet or halyard
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 7050 / (kg) 3200
• Breaking load: (lb) 13880 / (kg) 6300
• Weight: (lb) 0.818 / (g) 371

Dimensions:

• A: (inch) 1 3/16″ / (mm) 30
• B: (inch) 25/32″ / (mm) 20
• Length: (inch) 5 1/8″ / (mm) 130

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer Part Number: 02677
