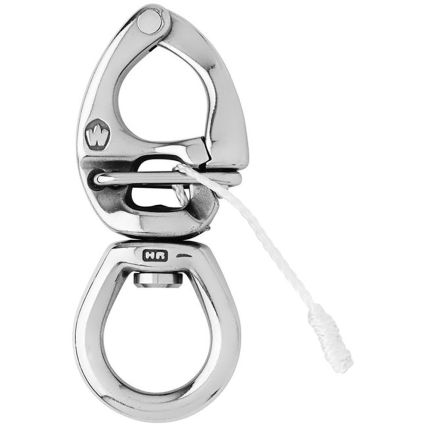

Wichard Hr Quick Release Snap Shackle With Large Bail-110mm Length – 4-21/64″

Wichard Hr Quick Release Snap Shackle With Large Bail-110mm Length – 4-21/64″

HR Quick Release Snap Shackle With Large Bail-110mm Length – 4-21/64″

Features:

• HR forged (17.4 PH) quick-release snap shackle with large bail
• The opening is made by pulling the lanyard
• Perfect to attach several lines (spinnaker sheets…)
• Outstanding working and breaking loads
• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations
• Perfect to attach several lines: spinnaker sheets…

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.353 / (g) 160

Dimensions:

• A: (inch) 25/32″ / (mm) 20
• B: (inch) 1 3/64″ / (mm) 26.5
• Length: (inch) 4 21/64″ / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer Part Number: 02775
