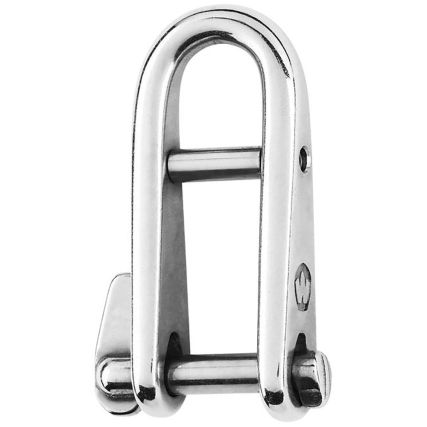

HR Key Pin Shackle With Bar – 6mm Pin Diameter

Features:

• Forged D shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• Perfect product for halyards or applications requiring opening/closing the shackle often
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 1320 / (kg) 600
• Breaking load: (lb) 4850 / (kg) 2200
• Weight: (lb) 0.117 / (g) 53

Dimensions:

• A: (inch) 1 49/64″ / (mm) 45
• B: (inch) 5/8″ / (mm) 16
• C: (inch) 15/64″ / (mm) 6
• D: (inch) 33/64″ / (mm) 13
• E: (inch) 5/32″ / (mm) 4
• F: (inch) 2 23/64″ / (mm) 60
• G: (inch) 1 29/64″ / (mm) 37
• L: (inch) 19/32″ / (mm) 15

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer Part Number: 91433
