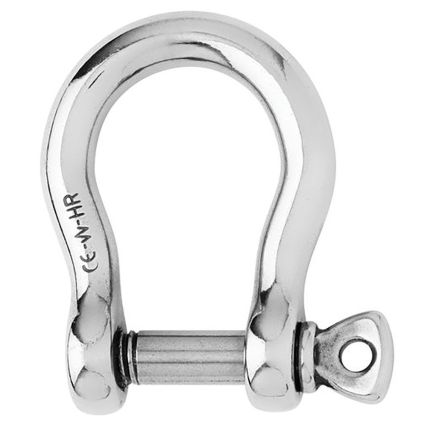

HR Bow Shackle – 24mm Diameter – 15/16″

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 28210 / (kg) 12800
• WLL: (lb) 15430 / (kg) 7000
• Breaking load: (lb) 77160 / (kg) 35000
• Weight: (lb) 3.761 / (kg) 1.706

Dimensions:

• A: (inch) 4 1/4″ / (mm) 108
• B: (inch) 1 57/64″ / (mm) 48
• C: (inch) 15/16″ / (mm) 24
• D: (inch) 1 27/32″ / (mm) 47
• D diameter: (inch) 15/16″ / (mm) 24
• E: (inch) 25/32″ / (mm) 20
• M: (inch) 4 41/64″ / (mm) 118

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer Part Number: 11249
