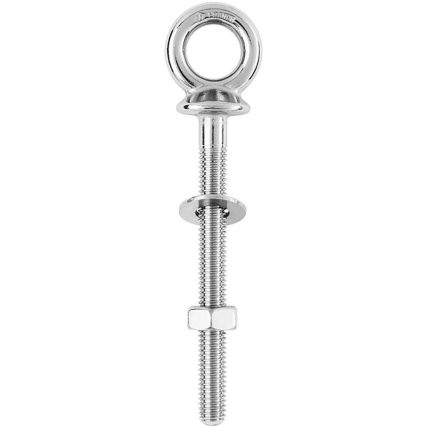

Eye Bolt – M10 x 150mm – Length 100mm

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 5950 / (kg) 2700
• Weight: (lb) 0.216 / (g) 98

Dimensions:

• A: (mm) M10 x 150
• B: (inch) 5/8″ / (mm) 16
• C: (inch) 1 27/64″ / (mm) 36
• D: (inch) 9/32″ / (mm) 7
• E: (inch) 63/64″ / (mm) 25
• F: (inch) 3 15/16″ / (mm) 100
• G: (inch) 3 15/32″ / (mm) 88

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 06495
