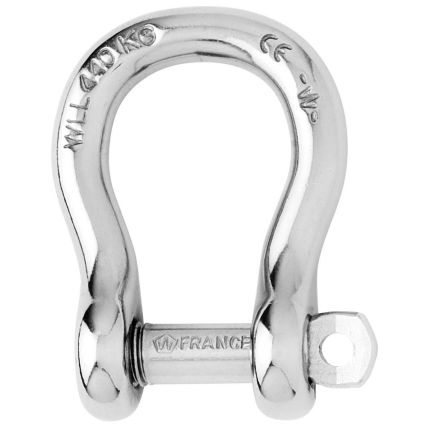

Captive Pin Bow Shackle – Diameter 5mm – 3/16″

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e…)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.042

Dimensions (see 2nd image):

• A (inch) 29/32″
• B (inch) 25/64″
• C (inch) 15/64″
• D (inch) 7/16″
• D diameter (inch) 13/64″
• E (inch) 13/64″
• M (inch) 1-1/32″

Manufacturer Part Number: 01442
