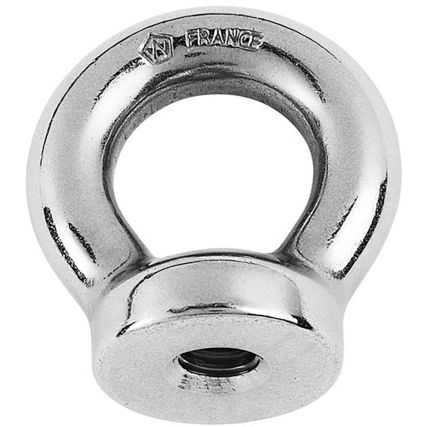

Wichard 8mm Eye Nut – 1/2″ Diameter

Wichard 8mm Eye Nut – 1/2″ Diameter

8mm Eye Nut – 1/2″ Diameter

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 4850 / (kg) 2200
• Weight: (lb) 0.044 / (g) 20

Dimensions:

• A: (inch) M8 x125 / (mm) M8 x125
• B: (inch) 33/64″ / (mm) 13
• C: (inch) 1 1/16″ / (mm) 27
• D: (inch) 15/64″ / (mm) 6
• E: (inch) 43/64″ / (mm) 17

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part Number: 06334
