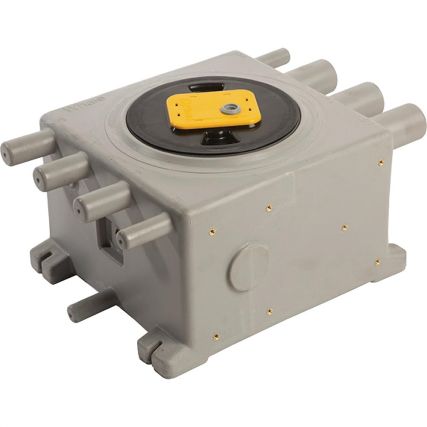

Whale Grey Waste Tank – 8 Liter – 2.1 Gallons – 1 Sensor

Whale Grey Waste Tank – 8 Liter – 2.1 Gallons – 1 Sensor

Grey Waste Tank – 8 Liter – 2.1 Gallons – 1 Sensor

This tank has a unique ‘triple seal’ lid that isolates electronics from the harsh grey waste environment for advanced durability.

Features:

• Integrated sensors for automatic pump control; a solid-state switch protected against water ingress
• Easy wiring – connect any 12V or 24V DC pump system (up to 20 amps with no relay required)
• Ports shaped for drilling accuracy (8-liter and 20-liter tanks only)
• Double switch models – the second sensor can be wired to a high-level alarm or second pump
• Pumps can be top- or side-mounted on a 20-liter tank

Specifications:

• Capacity: 8 liters (2.1 gallons)
• No. of Sensors: 1
• Electrical Connections: Tinned wire ends
• Inlet Hose Connections: 19mm (¾”) x 2, 25mm (1″) x 3, 38mm (1½”) x 3
• Outlet Hose Connections: 19mm (¾”) x 1, 25mm (1″) x 1
• Materials: Tank: MDPE, Seals: EPDM/Neoprene, Monprene®, Lid: Glass-filled Polypropylene, ABS, Polyurethane
• Service Kits (Lid & Sensor Array): AK1005

Manufacturer Part Number: GT0810B
