Uflex Power A Electronic Control Package – Dual Engine/Single Station – Mechanical Throttle/Electronic Shift

Uflex Power A Electronic Control Package – Dual Engine/Single Station – Mechanical Throttle/Electronic Shift

Power A ME21 – Electronic Control Package

-Dual Engine/Single Station – Mechanical Throttle/Electronic Shift

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug’N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

ME21 Package Includes:

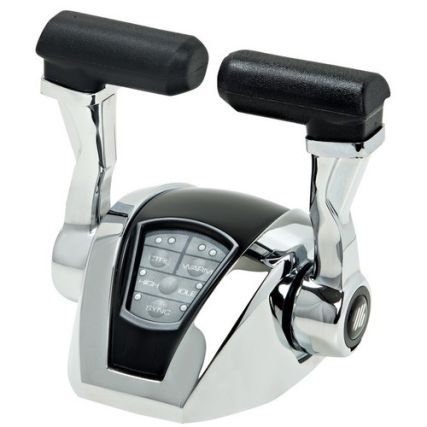

• 42011T – (1) PA2-B2 – Dual Lever Control w/o Trim
• 42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
• 42027J – (2) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
• 42028L – (1) PA2-NT – Network Terminator
• 42053K – (1) M-P3 – Main Power Supply Cable, 9.8′
• 71021K – (2) CAN-10 – Network Connection Cable 33′
• 73639T – (2) CAN-1 – Network Connection Cable 3′
• 42026G – (1) PA2-PU – Power Supply Unit f/12V Systems
• 42056S – (3) M-PE1 – Power Extension Cable 3.3′
• 42023A – (1) PA2-SU – Electronic Shift Unit
• 42060G – (2) M-S1 – Solenoid Shift Cable 3.3′

Manufacturer Part Number: ME21
