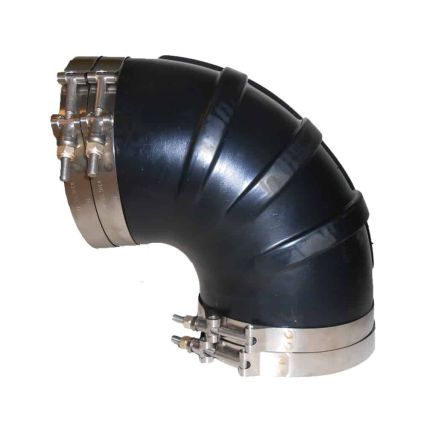

Trident Marine 6″ Id 90-Degree Epdm Black Rubber Molded Wet Exhaust Elbow W/4 T-Bolt Clamps

Trident Marine 6″ Id 90-Degree Epdm Black Rubber Molded Wet Exhaust Elbow W/4 T-Bolt Clamps

6″ ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

• Four stainless steel clamps are included
• This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
• Black high-temp EDPM rubber

Construction:

• Color: Black
• Reinforcement: Reinforcing ribs on 6” I.D. and above
• Temperature Range: up to 250°F (121°C)

Specifications:

• Inner Diameter: (inch) 6” / (mm) 152.4
• A: (inch) 7″ / (mm) 178
• B: (inch) 7” / (mm) 178
• C: (inch) 2.25” / (mm) 57
• D: (inch) 2.25” / (mm) 57
• R: (inch) 1.75” / (mm) 44.4
• W: (inch) 0.25” / (mm) 6.4
• Elbow Degree: 90 degrees

Manufacturer Part Number: TRL-690-S/S
