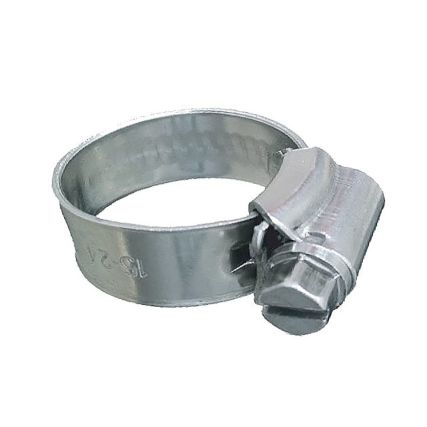

316 SS Non-Perforated Worm Gear Hose Clamp – 3/8″ Band – 11/32″-25/32″ Clamping Range – 10-Pack – SAE Size 6

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.

Features:

• The screw head is 7mm
• Long service life and safety for most general-purpose hose applications and connections

Recommendations:

• Measure hose O.D. before selecting clamp size for proper fit
• Double clamp on each hose end for critical applications

Construction:

• Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick
• Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

• SAE Size: 6
• Hose Inner Diameter: (inch) 5/16″ – 3/8″
• Clamping Range: (inch) 11/32″ – 25/32″ / (mm) 13-20
• Recommended Torque Inch lbs: 25-35

Manufacturer Part Number: 705-0381
