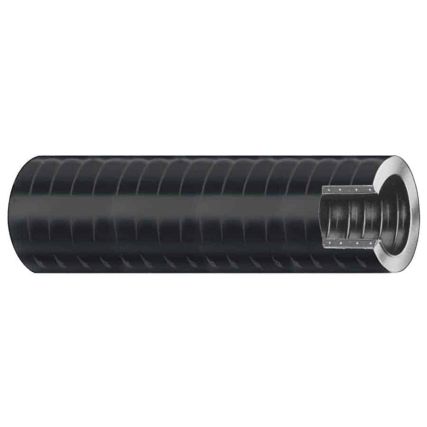

3/4″ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black – Sold by the Foot

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

• Sold by the foot
• 149 series of hoses is extra flexible

Application:

• Bilge and live well hose

Specifications:

• Tube & Cover: Hard PVC helix
• Color: Black
• Reinforcement: PVC Helix
• Temperature Range: 10°F-120°F (-12°C-48°C)
• Inner Diameter: (inch) 3/4″ / (mm) 19.1
• Outer Diameter: (inch) .986″ / (mm) 25
• Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
• Weight: (Lb./ 50 ft.) 11 / (Kg/m) 4.99
• Bend Radius: (inch) 3″ / (mm) 76.2

*Burst Pressure is 4 x Working Pressure

Manufacturer Part Number: 149-0346-FT
