Simrad Xsonic Ss260 50/200khz 9-Pin Connector Depth/Temp

Simrad Xsonic Ss260 50/200khz 9-Pin Connector Depth/Temp

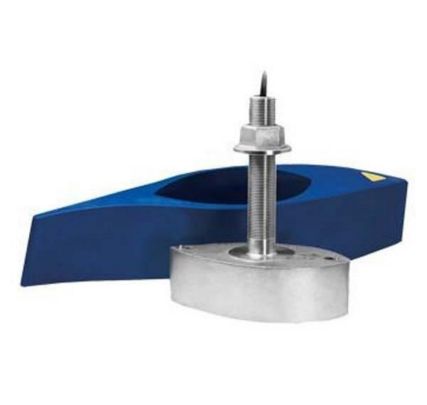

Simrad SS260 Xsonic 50/200Khz 1kw Stainless Steel Thru Hull

Model: 000-13783-001

• The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.
• Excellent for deep water bottom and structure fishing up to 500m/1640ft.
• Calculate depth and temperature from one compact sensor.
• Provides extremely accurate echosounding data, even at speeds of over 30 knots.
• The narrow, 6° beam 200 kHz ceramic offers excellent resolution and and crisp image detail for bottom fishing. The seven-element 50 kHz array has a wider 19° beam for deepr blue-water fishing.
• Built to withstand the environment.

The SS260 is a stainless steel, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for fishing in shallow, medium and deep waters.

Specifications

Frequency	50/200 kHz
Power rating	1kw
Speed sensor	no
Temperature sensor	Yes
Mounting style	Stainless Steel Thru-hull
Beamwidth	50 kHz—19°, 200 kHz—6°
Cable length	10 meter
Connector	9-pin connector

What’s in the Box:

• SS260 50/200Khz
• Fairing block

Manufacturer Part Number: 000-13783-001
