Simrad Ss60 0deg 50/200khz 9-Pin Thru Hull Transducer

Simrad Ss60 0deg 50/200khz 9-Pin Thru Hull

Simrad SS60 Stainless Steel 600 W Thru Hull 50/200 Khz Depth/Temp (0° tilt)

Model: 000-13784-001

• Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
• Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
• Provides extremely accurate data.
• The 0° tilt is ideal for boats with a 0° to 14° hull deadrise.
• The low profile housing minimises drag with just 5mm extending outside of the hull.
• Easily connect to NSSevo3, Lowrance HDS G3

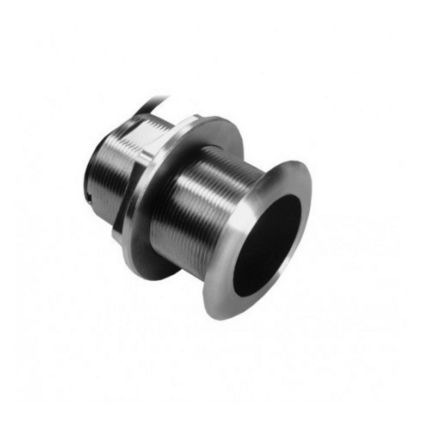

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Specifications

Frequency	50/200 kHz
Power rating	600 watts
Speed sensor	No
Temperature sensor	Yes
Mounting style	Thru Hull
Elements	1
Beamwidth @ -3db	45 (50 kHz) 12 (200 kHz)
Cable length	10 meters
Connector	9-pin black

Manufacturer Part Number: 000-13784-001
