Si-Tex T-760 Compact Color Radar W/4kw 18″ Dome – 7″ Touchscreen

Si-Tex T-760 Compact Color Radar W/4kw 18″ Dome – 7″ Touchscreen

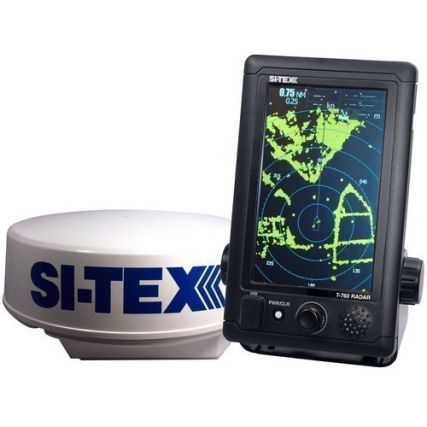

T-760 Compact Color Radar with 4kW 18″ Dome

Big radar performance and features are available for any size boat — and budget with the SI-TEX T-760. A vertically oriented, slim case boasts advanced touch screen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.

The T-760 Series case measures only 5.4″ W X 8.9″ H X 3.5″ D. Yet, this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability and standard 10-target MARPA – features often associated with larger, costlier systems. Control of all these features is achieved via the T-760’s touch screen LCD display and single rotary encoder dial, for simple, intuitive operation.

The series includes the T-760, equipped with an 18-inch compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Both the T-760 and T-761 feature powerful 4kW transmitters, ensuring accurate detection and presentation of targets large and small. Both models also offer multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.

Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Head-Up and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a SI-TEX Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship’s speed and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.

In the SI-TEX tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial as well as recreational vessels. SI-TEX’s two-year limited warranty and Long Island, New York-based service department are the navigator’s assurance of reliable performance and long-term satisfaction

Features:

• 7″ color LCD display
• 10M Cable
• Intuitive touch screen/rotary dial control
• Standard 50 target AIS tracking
• Standard 10 target MARPA
• Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions
• Features include Relative Motion/True Motion/Head-Up/North-Up
• Optional color RGB video output

Manufacturer Part Number: T-760
