Shakespeare Ca-T Amplifier T-Mobile 2/3/4g

Shakespeare Ca-T Amplifier T-Mobile 2/3/4g

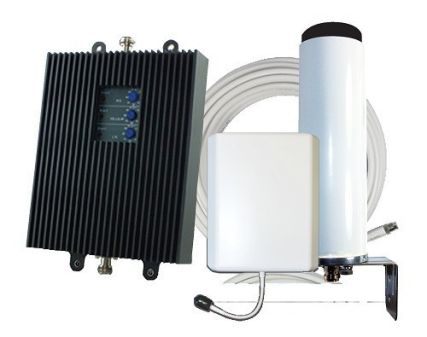

This full-featured amplifier kit includes manually adjustable dials for each frequency and automatic shutdown is built-in for optimizing performance. Ideal for large vessels, homes or office buildings and warehouses with a low cellular signal and/or requiring large coverage. Covers up to 6,000 square feet. Supports Multi-Users ( up to 8 )





	CA-T T-Mobile
Frequency	Uplink 1850-1910 Downlink 1930-1990
	Uplink 824-849, Downlink 869-894
	Uplink 1710-1755, Downlink 2110-2155
Avg Gain	65dB
Maximum Gain	70dB
VSWR	≤2.0
Standard Supporrted	LTE or AWS, HSPA(+), EVDO, CDMA, GSM, UMTS, WCDMA, and all other standard cell phone networks
AC Power	Input AC110V, 60Hz; Output: DC6-12V
Maximum RF Output Power	3W EIRP for Cellular, 2W EIRP for PCS, 3W EIRP for LTE, 1W EIRP for AWS
Noise Figure	7dB
Cable	CM400 Recommended
RF Connectors	N Female connectors on both ends
Power Consumption	<30w
Dimensions Amplifier	8.5″ x 6.25″ x 1.5″
Amplifier Weight	3lbs

Manufacturer Part Number: CA-T
