Shadow-Caster Dlx Series Down Light – White Housing – White

Shadow-Caster Dlx Series Down Light – White Housing – White

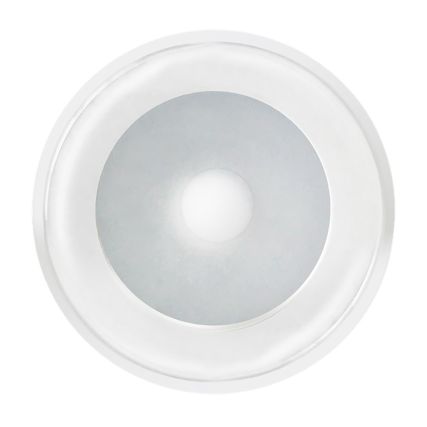

DLX Series Down Light – White Housing – White

The Shadow-Caster® Large Down Light (SCM-DLX) is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide-angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers, and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 colors (white, blue, and red) as well as a full-color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds
• Power toggle feature to set brightness and change color
• True white LED for best color performance
• 120-degree viewing angle
• High-efficiency switch mode power supply
• Waterproof low-profile aluminum housing
• White, black, or polished chrome finish
• All-Glass reveal provides a modern look

Specifications:

• 300-lumen output
• 120-degree beam angle
• 3-watt power draw
• 10-30 volts Input
• 250mA at 12 volts, 125mA at 24 volts
• 6200 Kelvin cool white color temperature
• 3” (76mm) OD, 0.175” (4mm) mounting height
• 2” mounting hole
• IP67 waterproof design
• Durable glass lens
• Color change version includes Shadow-NET® interface for control

Includes:

• Down light
• Flush-mounting bracket and (3) #4 X 0.5” SS316PH screws
• Quick start guide
• Standard 2 year warranty

Manufacturer Part Number: SCM-DLX-GW-WH
