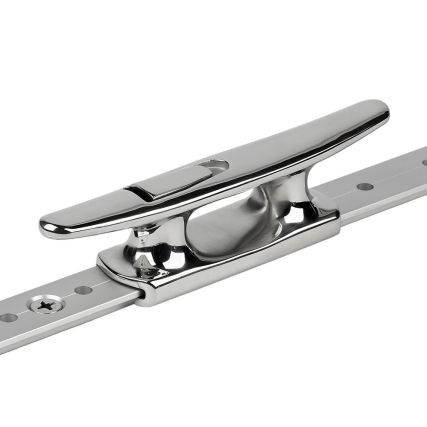

Schaefer Mid-Rail Chock/Cleat Stainless Steel – 1-1/4″

Schaefer Mid-Rail Chock/Cleat Stainless Steel – 1-1/4″

Mid-Rail Chock/Cleat Stainless Steel – 1-1/4″

Chock cleats will fit Schaefer T-Track measuring 1-1/4″ wide, 7/16″ overall height, 3/16″ “T” thickness and a base width of 11/16″. They will not fit earlier versions of T-Track or some competitors models.

Specifications:

• Length 7-1/2″ (190 mm)
• ID 1-3/4″ (45 mm)
• Line Size 5/8″ (16 mm)
• Track 1-1/4″ x 3/16″ (31 mm x 4.6 mm)
• Pin. Size .355
• SWL 4500 lbs. (2045 kg)
• Weight 1.5 lbs. (.68 kg)

Manufacturer Part Number: 70-75
