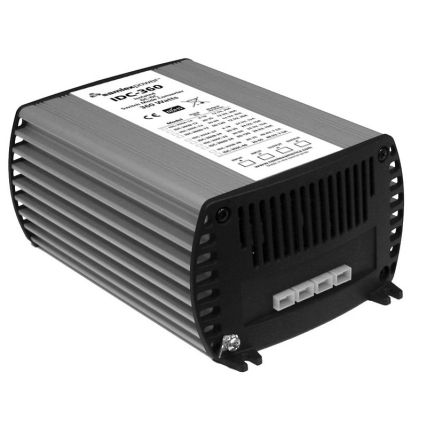

360W Fully Isolated DC-DC Converter – 30A – 20-35V Input – 12.5V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features:

• Fully Isolated
• Short Circuit Protected
• Current Limited
• CE Approved
• 2 Year Warranty

Specifications:

• Input: 20-35 VDC
• Output: 12.5 VDC
• Watts: 360
• Amps: 30 Amps
• Weight: 3.1 (lbs)
• Weight: 1.4 (kg)
• Dimensions: 5.23 x 7.5 x 3.27 (in)
• Dimensions: 132.8 x 190.5 x 83 (mm)
• Safety: CE
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: IDC-360B-12
