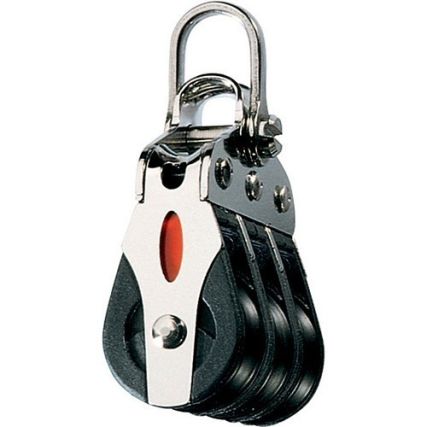

Ronstan Series 20 Ball Bearing Block – Triple – 2-Axis Shackle Head

Ronstan Series 20 Ball Bearing Block – Triple – 2-Axis Shackle Head

Series 20 Ball Bearing Block – Triple – 2-Axis Shackle Head

Features:

• Low friction
• High static and dynamic load capacity
• Lightweight
• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines
• Dinghy vangs
• Cunninghams
• Traveller controls

Materials:

• Stainless steel ball bearings
• UV Stabilized Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4″)
Max. Rope Ø: 6mm(1/4″)
PinØ: 4mm(5/32″)
M.W.L.: 400kg(880lbs)
B. L.: 850kg(1,870lbs)
Weight: 62g(2.2oz)

Manufacturer Part Number: RF20302
