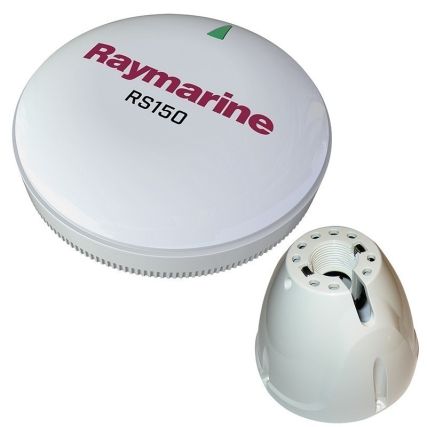

RayStar 150 GPS Sensor w/Pole Mount

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 – 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity – acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS & GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): <15M
• Position accuracy with SDGPS (95%): <5M
• Speed accuracy (95%): <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84

Pole Mount for RS150 GPS Antenna

Raymarine’s Pole Mount specifically for the RS150 GPS Antenna. The RS150 has 72 channels and offers faster 10Hz performance and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Manufacturer Part Number: T70327
