Raymarine I70s Wireless Wind With Dst800, Heading Sensor

Raymarine I70s Wireless Wind With Dst800, Heading Sensor

Raymarine i70s, Wireless Wind, DST800, Heading Sensor and Backbone Kit

Model: T70348

Raymarine’s premium instrument system-in-a-box kit features the i70s Multifunction Color Instrument, the Micro-Talk™ Wireless Performance Sailing Gateway, a wireless wind system, EV1 Heading Sensor, as well as depth, speed and temperature sensing.

All of the cables and connectors needed to establish a basic SeaTalkng network are included in the kit. The included Micro-Talk™ Wireless Performance Sailing Gateway communicates directly to the kit’s T120 Wireless masthead transducer for precise wind speed and direction. The system also includes the Airmar DST800 through-hull transducer for depth, speed, log and water temperature functions. All of this data can be displayed on the included i70s multifunction color instrument and the Multifunction Wireless Remote Control.

Also included is Raymarine’s award-winning EV1 Evolution Heading Sensor. The EV1 is entirely self-calibrating and measures the movement of the boat with is 9-axis sensor system. With its built-in Evolution R4 software, the EV1 further refines the values for wind speed, wind direction, course over ground, speed over ground and cross track error by calculating out the detrimental effects of vessel yaw, pitch, roll and heel on these values. It also provides an ultra-stable heading source for other onboard electronics including autopilots, radar systems, chart plotters and instruments.

The system can easily be expanded as needed from Raymarine’s extensive line of wired and wireless instruments, sensors, multifunction displays and autopilots.

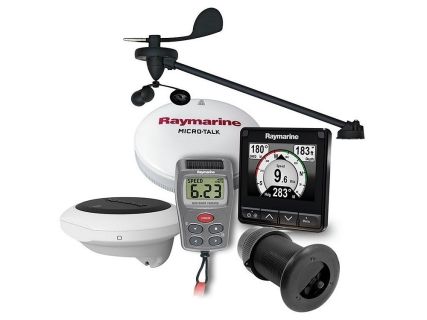

What’s in the Box:

• E70361 Micro-Talk™ Wireless Performance Sailing Gateway
• T120 Wireless Masthead Transducer
• T113 Multifunction Wireless Remote Display
• E70327 i70s Multifunction Color Instrument Display
• E70096 Evolution™ EV1 Heading Sensor
• A22111 DST800 Depth, Speed, Temperature Though Hull Transducer
• A06049 SeaTalkng Power Cable
• A06036 SeaTalkng Backbone Cable (5 meters)
• A06064 SeaTalkng 5-Way Block
• A06031 SeaTalkng Network Terminator (x2)
• A06028 SeaTalkng T-Connector

Manufacturer Part Number: T70348
