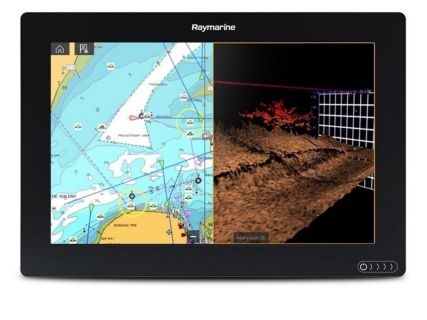

Axiom™ 12 RV – 12″ Chartplotter Combo with RV-100 Transducer

The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 12 RV features a 12-inch rugged all-glass touchscreen display and is powered by Raymarine’s powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 12 RV has built-in RealVision 3D™ sonar.

Axiom 12 RV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

The Axiom 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions, and the RV-100 Transom Mount Transducer.

Features:

• Rugged All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
• RealVision 3D™ Sonar Built-In – Go fishing like never before with life-like 3D imagery of structures and fish – an unprecedented view of the underwater world
• Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
• Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
• Quantum CHIRP Radar Ready – Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
• Marine Audio Control – Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom’s waypoints, routes, and charts with Navionics mobile app

RealVision 3D™ All-In-One Transom Mount Transducer

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

What’s in the Box?

• RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
• Transom bracket
• Mounting hardware
• Installation instructions

Manufacturer Part Number: E70369-03
