Raritan Marine Elegance Discharge Pump Assembly – 24v

Raritan Marine Elegance Discharge Pump Assembly – 24v

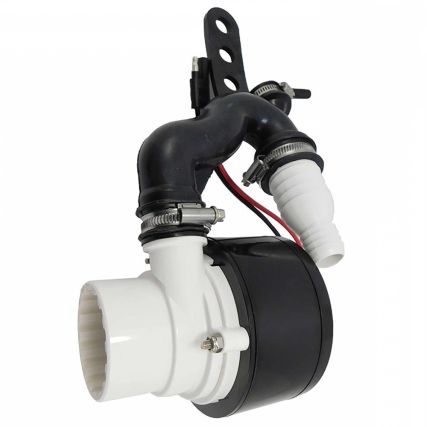

Marine Elegance Discharge Pump Assembly – 24V

Raritan’s Marine Elegance Discharge Pump Assembly, 24V.

In the Box:

• M23A             #10 Lockwasher SS (5)
• 1108A            10-32 SS Nut
• 161123           Macerator Blade
• 31-102           Motor Shaft Seal
• 221110           Discharge Pump Seal Plate
• 221105           O-Ring
• 161115            Impeller
• 221115            Discharge Pump Macerator Housing
• 31-114             Lock Nut 10-32 W/Nylon(3)
• 221012            Discharge Motor 12 V or 221024 Discharge Motor 24V
• 221141W         Discharge Hose
• 221135W         Joker Valve (2) (Also includes #24)
• 221145            Discharge Adapter Fitting
• 221146            Joker Valve Insert
• 221160            Discharge Hose Clamp (small)
• 221165            Discharge Hose Clamp (large)
• VLVE               Vent Valve Assembly
• FC001             Vent Valve Hose Clamp

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 2210024
