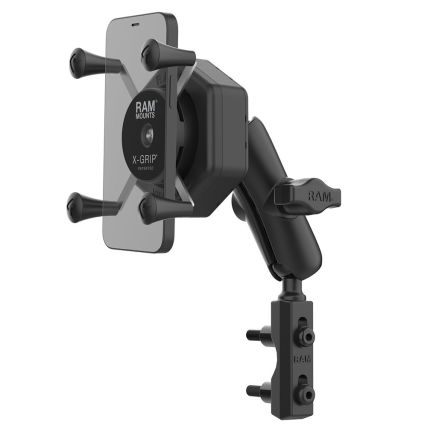

RAM® X-Grip® Phone Mount with Vibe-Safe™ & Reservoir Base

The RAM® X-Grip® Phone Mount with RAM® Vibe-Safe™ & Reservoir Base (RAM-B-174-UN7-462) is a combination of the RAM® X-Grip® Phone Mount with Motorcycle Brake/Clutch Reservoir & Handlebar Base and the RAM® Vibe-Safe™—RAM’s vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM® X-Grip® can rotate between portrait and landscape by loosening the center screw.

This product comes with one (1) medium B size arm, one (1) RAM® Motorcycle Brake/Clutch Reservoir, and a handlebar Ball Base that attaches to either the handlebar or brake/clutch and accommodates rails from .5″ – 1.25″ in diameter, and an optional device tether that is recommended for outdoor applications. This kit also includes one (1) zinc-coated metal U-bolt that accommodates rails ranging from 0.5″ to 1.25″ in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of the handheld device with a case, sleeve, or skin when determining the overall size.

Features:

• RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
• Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
• Unique structure and thoughtfully designed with all industries in mind
• Backed by a lifetime warranty

Specifications:

• Hardware Included: (1) Optional Tether, (1) Glue Tube for Rubber Caps, (2) M6 x 55mm Hex Bolts, (2) #1/4-20 x 2″ Hex Bolts, (2) 1/4″-20 x 2.5″ Hex Bolts, (2) 1/2″ Spacers, (2) 1/4″ Split Lock Washers, (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails, (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails, (2) 1/4″-20 Nylock Nuts, (2) Rubber Caps, and (1) U-Bolt Spacer
• Holder Dimensions: Width Range: 1.875″ – 3.25″, Depth Range: .875″ max
• Clamp Range: .5″ – 1.25″ diameter
• Socket to Socket Length: 3″
• Ball Size: B Size (1″)
• Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• Materials: Marine-grade aluminum, High strength composite, Stainless steel
• Packaging Type: Retail Bag
• Weight: 1.26 lbs

Compatible Devices:

Apple: iPhone 6s, iPhone 7, iPhone 8, iPhone SE, iPhone X, iPhone Xs, iPhone Xr, iPhone 11, iPhone 11 Pro, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 14, iPhone 14 Pro, and iPhone 15 Pro

• Blackberry: DTEK 50, DTEK 60, and KEYone
• Garmin: Approach G8, Edge 1030, and Edge Explore 1000
• Google: Pixel, Pixel XL, Pixel 2, Pixel 3, Pixel 3a, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 8
• HTC: U11 and U11 life
• Huawei: Mate 20 Pro and P30 Pro
• LG: Aristo, Aristo 2, Exalt LTE, G5, G5 Silver, G6, G6+, G7 ThinQ, G8 ThinQ, Grace LTE, K20, K20 Plus, K20 V, K3, K3 2017, K8 2017, Phoenix 3, Q6, Rebel 2 LTE, Rebel 3 LTE, Risio 2, Tribute Dynasty, Tribute HD, V30, V35 ThinQ, V40 ThinQ, Wine LTE, Zone 4
• Motorola: moto e4, moto g5s plus, moto g6, moto g7 power, moto X2, moto X4, and razr
• Nokia: 1, 2, 3, 5, 6, 8, 9 PureView, 216, 230, 150 Dual SIM, 3310 Dual SIM, 7 plus, 8 Sirocco, and 8110 4G
• OnePlus: 6T, 7, 7T, 7T Pro, and 7 Pro
• Samsung: Galaxy A3, Galaxy A3 (2016), Galaxy A3 (2017), Galaxy A5, Galaxy A5 (2016), Galaxy A5 (2017), Galaxy A6, Galaxy A6+, Galaxy A7 (2016), Galaxy A8+, Galaxy A8 (2018), Galaxy A8+ (2018), Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy AMP 2, Galaxy AMP Prime, Galaxy AMP Prime 2, Galaxy C5, Galaxy E5, Galaxy Express 3, Galaxy Express Prime 2, Galaxy Grand Max, Galaxy J1, Galaxy J1 (2016), Galaxy J2, Galaxy J2 (2016), Galaxy J2 (2017), Galaxy J3 (2016), Galaxy J3 (2017) International, Galaxy J3 Emerge, Galaxy J3 Prime, Galaxy J3 V, Galaxy J5, Galaxy J5 (2016), Galaxy J5 (2017), Galaxy J7 (2016), Galaxy J7 (2017), Galaxy J7 Perx, Galaxy J7 Prime, Galaxy J7 Prime 2, Galaxy Luna, Galaxy Note 8, Galaxy Note Fan Edition, Galaxy Note 10, Galaxy Note20, Galaxy On NXT, Galaxy On5, Galaxy On7 Prime, Galaxy On8, Galaxy S5, Galaxy S5 Neo, Galaxy S6, Galaxy S6 Active, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 FE 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S23, Galaxy V Plus, Galaxy XCover 3, Galaxy XCover 4, Galaxy XCover 5, Galaxy Z Fold2, Galaxy Z Fold3, W2017, Z1, Z2, Z3, and Z4
• Sony: Xperia L1, Xperia X, Xperia X Compact, Xperia X Performance, Xperia XA, Xperia XA1, Xperia XA1 Plus, Xperia XA2, Xperia XZ, Xperia XZ1, Xperia XZ1 Compact, Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3, Xperia XZs, Xperia Z3, Xperia Z3+, Xperia Z5, Xperia Z5 Compact
• Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, and Mi Mix 3
• ZTE: Axon 9 Pro and Axon 10 Pro

Manufacturer Part Number: RAM-B-174-UN7-462
